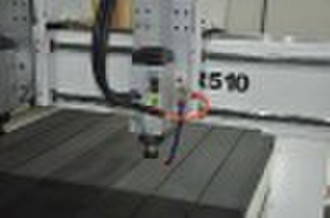

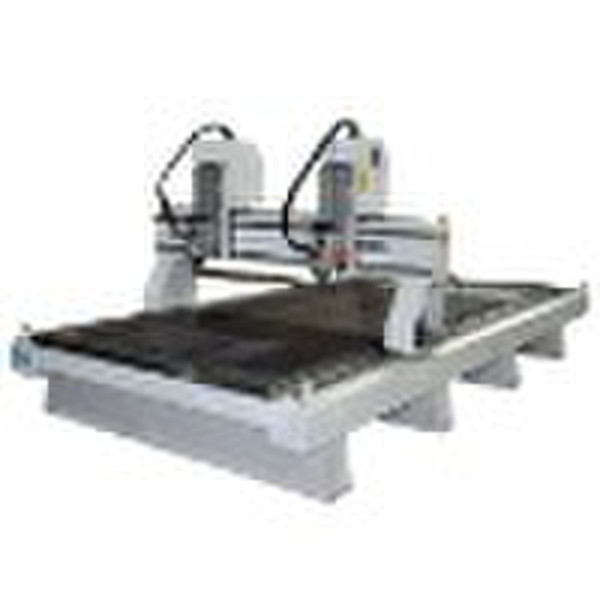

stone and marble CNC router
MAX WU
Contact person
Basic Information
ModelTR510 stone machineItemDescriptionParameter1X, Y, Z working area1500x3000x300mm2Table size1665X3500mm3Resolution±0.03/300mm4Repeatability±0.05mm5Lathe sructureSteel tube frame6X structureRack pinion, linear rails7Y structureRack pinion, linear rails8Z structureBall screw, linear rails9Max. consume power8KW10Max. rapid0-18000mm/min11Max. working speed0-5000mm/min12Spindle power motor6kw 24000rpm italian HSD spindle, ER3213Spindle speed0-24000RPM14Working modeStepper15Working voltage3 phase AC380V/50HZ/60Hz16Command codeG code(*uoo,*nc,*mmg, *plt)17Operating systemDSP System18InterfacePrinter port 50pins or USB19System memory128M (or pen driver)20ColletER3221X, Y working delicacy<0.01mm22SoftwareType3 software, ucancam software23Running circumstanceTemperature: 0°C 45°Crelative humidity: 30% 75%24Packing size3680x2170x1750mm25Net weight2000KG26Gross weight2300KG
Delivery terms and packaging
Port: QINGDAO PORT, CHINA
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
