Basic Information

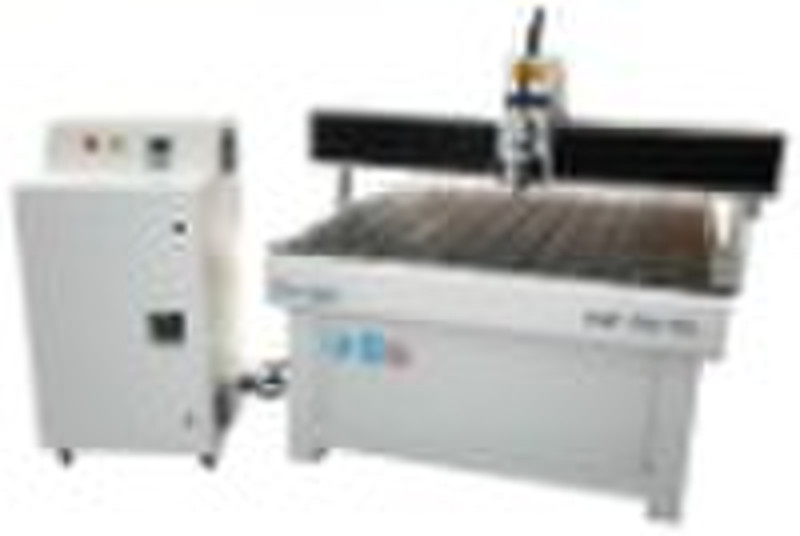

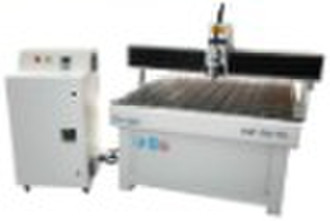

ModelTR404B CNC ROUTERItemDescriptionParameter1X, Y, Z working area1220X1220X120mm2Table size1294X1560mm3Resolution± 0.03/300mm4Repeatability± 0.02mm5Lathe structureCast steel6X structureBall screw, shaftrails7Y structureBall screw,linear rails8Z structureBall screw, shaft rails9Max. consume power4Kw10Max. rapid0-6000mm/min11Max. working speed0-3000mm/min12Spindle power motor1.5kw chinese self-coolant spindle, ER1613Spindle speed0-24000RPM14Working modeStepper motor15Working voltageSinglephase AC220V/50HZ/60Hz16Command codeG Code(*uoo,*nc,*mmg, *plt)17Operating SystemDSP system or Mach3 system18InterfacePrinter port 50pins or USB19System memory128M (or pen driver)20ColletER1621X, Y working delicacy<0.01mm22SoftwareType3 software, ucancam software23Running circumstanceTemperature: 0°C 45°Crelative humidity: 30% 75%24Packing size1800X1850X1650mm25Net weight380KG26Gross weight650KG

Delivery terms and packaging

Port: QINGDAO PORT, CHINA

Payment term

Telegraphic transfer
