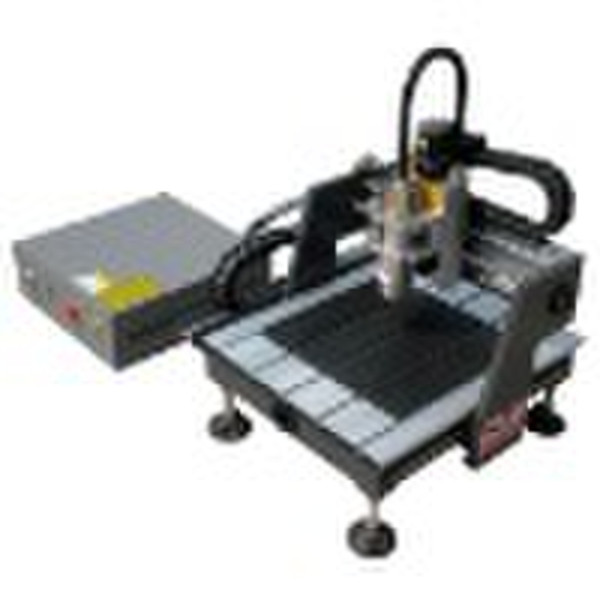

CNC router TR101-1 (pic-1)
MAX WU
Contact person
Basic Information
ModelTR101-1 CNC ROUTERItemDescriptionParameter1X, Y, Z working area400X400X100mm2Table size514X600mm3Resolution± 0.03/300mm4Repeatability± 0.02mm5Lathe structureCast steel6X structureBall screw, shaftrails7Y structureBall screw,linear rails8Z structureBall screw, shaft rails9Max. consume power3Kw10Max. rapid0-6000mm/min11Max. working speed0-3000mm/min12Spindle power motor1.5kw chinese self-coolant spindle, ER1613Spindle speed0-24000RPM14Working modeStepper motor15Working voltageSinglephase AC220V/50HZ/60Hz16Command codeG Code(*uoo,*nc,*mmg, *plt)17Operating SystemDSP system or Mach3 system18InterfacePrinter port 50pins or USB19System memory128M (or pen driver)20ColletER1621X, Y working delicacy<0.01mm22SoftwareType3 software, ucancam software23Running circumstanceTemperature: 0°C 45°Crelative humidity: 30% 75%24Packing size910X880X830mm25Net weight110KG26Gross weight170KG
Delivery terms and packaging
Port: QINGDAO PORT, CHINA
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
